Parameters

• model

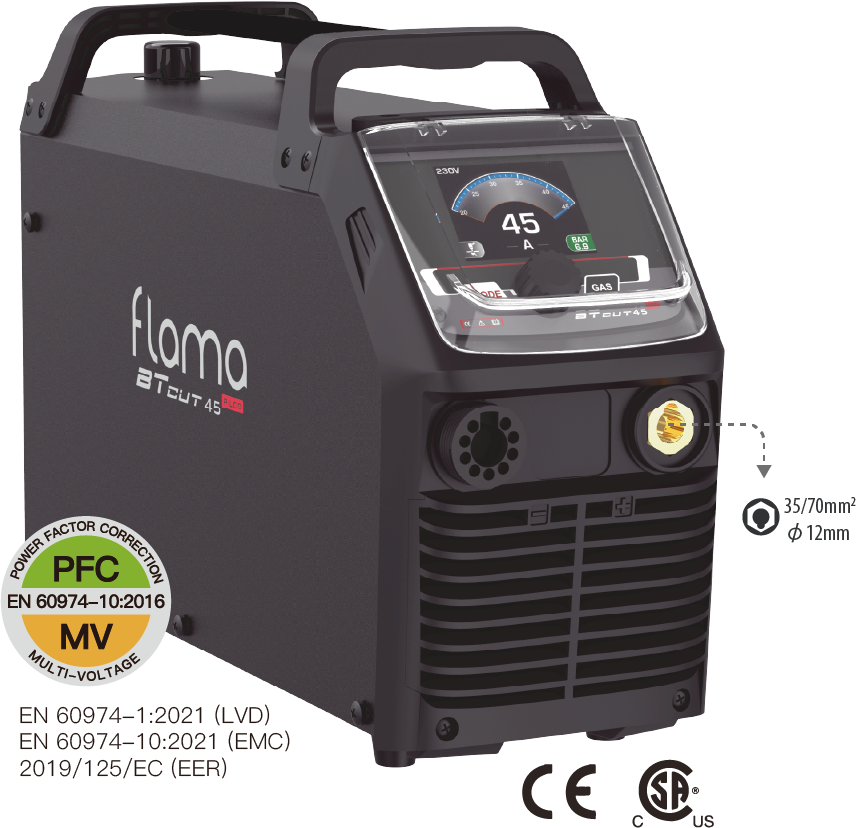

  BT CUT 45 PFC

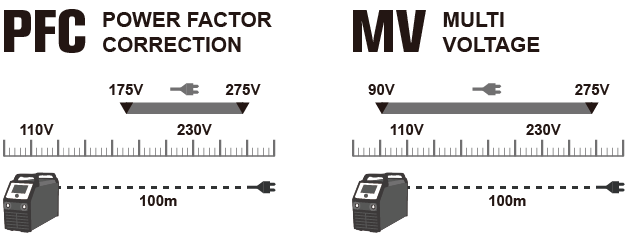

• power supply voltage(V)

  90-275

• Fre.(HZ)

  50/60

• Input voltage (V)

  1~110

  1~230

• Effective current (A)

  18.3

  14.4

• Rated input current(A)

  31.0

  22.7

• Rated Input Power (KW)

  3.4

  5.1

• Duty Cycle(40℃ 10Min)

  35% 30A 60% 22A 100% 20A

  40% 45A 60% 36A 100% 28A

• No Load Voltage(V)

  377

  377

• Cutting Current Range(A)

  20-30

  20-45

• Severance cut for Carbon steel(mm)

  ≤15

  ≤25

• Production Cut（mm）
  Carbon steel
  Stainless steel
  Aluminum
  Copper

  ≤10 ≤8 ≤8 ≤8

  ≤16 ≤16 ≤16 ≤16

• Insulation Class

  F

  F

• Protection Class

  IP21S

  IP21S

• Cooling

  AF

  AF

• Net Weight(Kg)

  7.7

• Dimensions(mm)

  500*150*290
