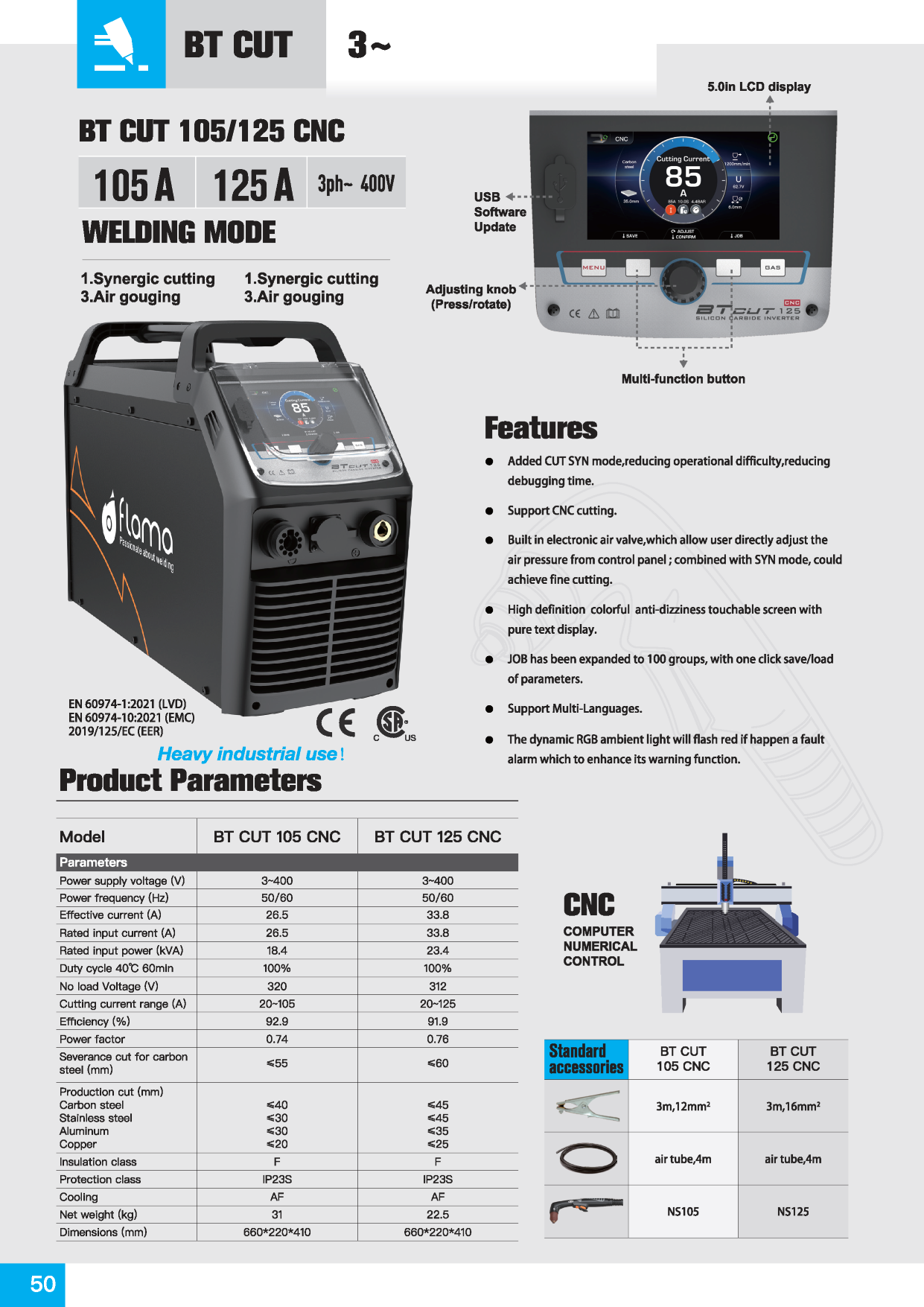

Parameters

• model

  BT CUT 105 CNC

  BT CUT 125 CNC

• power supply voltage(V)

  3~400

  3~400

• Fre.(HZ)

  50/60

  50/60

• Effective current (A)

  28.4

  35.5

• Rated input current(A)

  28.4

  35.5

• Rated Input Power (KW)

  19.5

  24.6

• Duty Cycle(40℃ 10Min)

  100%

  100%

• No Load Voltage(V)

  395

  395

• Cutting Current Range(A)

  20~105

  20~125

• Severance cut for Carbon steel(mm)

  ≤55

  ≤60

• Production Cut（mm）
  Carbon steel
  Stainless steel
  Aluminum
  Copper

  ≤40 ≤30 ≤30 ≤20

  ≤45 ≤45 ≤35 ≤25

• Insulation Class

  F

  F

• Protection Class

  IP21S

  IP21S

• Cooling

  AF

  AF

• Net Weight(Kg)

  33.2

  37

• Dimensions(mm)

  780*260*490

  780*260*490
