Parameters

• Model

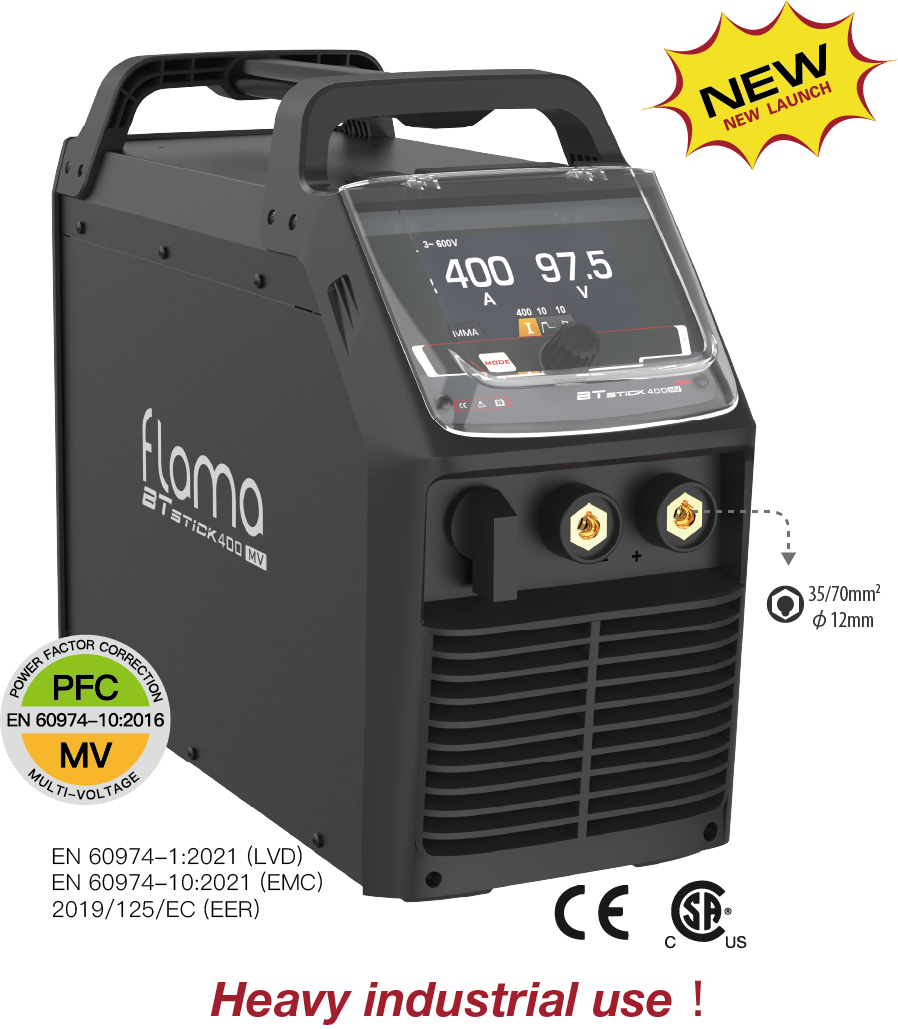

  BT STICK 400 MV CEL

• Power supply voltage(V)

  200-600

• Power frequency (Hz)

  50/60

• Input voltage (V)

  1~230

  3~230

  3~400

  3~600

• MMA

  TIG

  MMA

  TIG

  MMA

  TIG

  MMA

  TIG

• Effective current (A)

  29.4

  20

  23.8

  17.5

  18.9

  13.9

  14.9

  11.3

• Rated input current (A)

  38.0

  25.8

  30.7

  22.6

  24.4

  17.9

  19.3

  14.6

• Rated Input Power (KW)

  8.7

  5.9

  12.3

  9.0

  16.9

  12.4

  21.0

  15.2

• Duty Cycle(40℃ 10Min)

  60% 250A 100% 195A

  60% 320A 100% 250A

  60% 400A 100% 310A

  60% 400A 100% 310A

• No Load Voltage(V)

  74

  68

  74

  68

  74

  68

  100

  95

• Welding Current Range(A)

  20-250

  20-320

  20-400

  20-400

• Efficiency (%)

  90

• Power factor

  0.99

  0.96

  0.96

  0.8

  0.78

• Insulation Class

  F

• Protection Class

  IP21S

• Cooling

  AF

• Net Weight(Kg)

  33

• Dimensions(mm)

  700*265*490

• Model

  BT STICK 500 MV CEL

• Power supply voltage(V)

  200-600

• Power frequency (Hz)

  50/60

• Input voltage (V)

  1~230

  3~230

  3~400

  3~600

• MMA

  TIG

  MMA

  TIG

  MMA

  TIG

  MMA

  TIG

• Effective current (A)

  29.4

  20

  23.8

  17.5

  26.3

  20

  21.6

  16.7

• Rated input current (A)

  38.0

  25.8

  30.7

  22.6

  34

  25.9

  27.9

  21.5

• Rated Input Power (KW)

  8.7

  5.9

  12.3

  9.0

  13.6

  10.4

  16.7

  12.9

• Duty Cycle(40℃ 10Min)

  60% 250A 100% 195A

  60% 320A 100% 250A

  60% 500A 100% 390A

  60% 500A 100% 390A

• No Load Voltage(V)

  74

  68

  74

  68

  75

  67

  101

  95

• Welding Current Range(A)

  20-250

  20-320

  20-500

  20-500

• Efficiency (%)

  90

• Power factor

  0.99

  0.96

  0.96

  0.8

  0.78

• Insulation Class

  F

• Protection Class

  IP21S

• Cooling

  AF

• Net Weight(Kg)

  33

• Dimensions(mm)

  700*265*490
