Parameters

• model

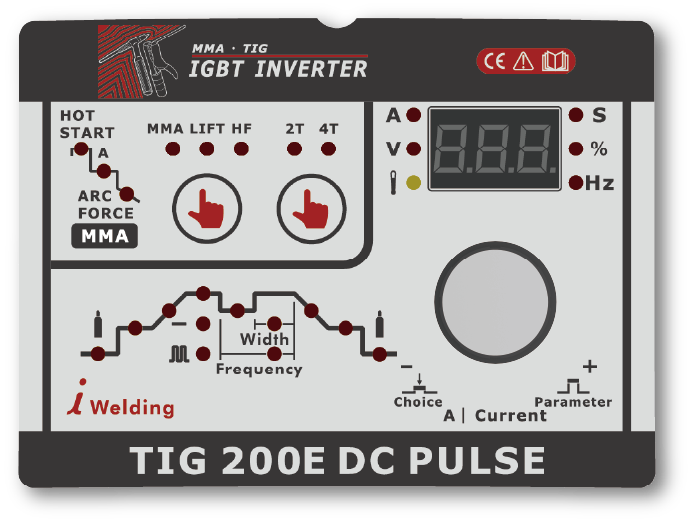

  TIG 200E DC PULSE

• power supply voltage(V)

  1~230

• Power frequency(HZ)

  50/60

• TIG

  MMA

• Effective current (A)

  25.1

  30.1

• Rated input current(A)

  32.5

  47.6

• Rated Input Power (KW)

  7.5

  10.9

• Duty Cycle(40℃ 10Min)

  60% 200A 100%155A

  40% 200A 100%126A

• Welding Current Range(A)

  10-200

  10-200

• No Load Voltage(V)

  65

  67

• Efficiency (%)

  84.6

• power factor

  0.61

• Insulation Class

  F

• Protection Class

  IP21S

• Cooling

  AF

• Net Weight(Kg)

  6.1

• Dimensions(mm)

  450*150*280
